Heat source equipment series

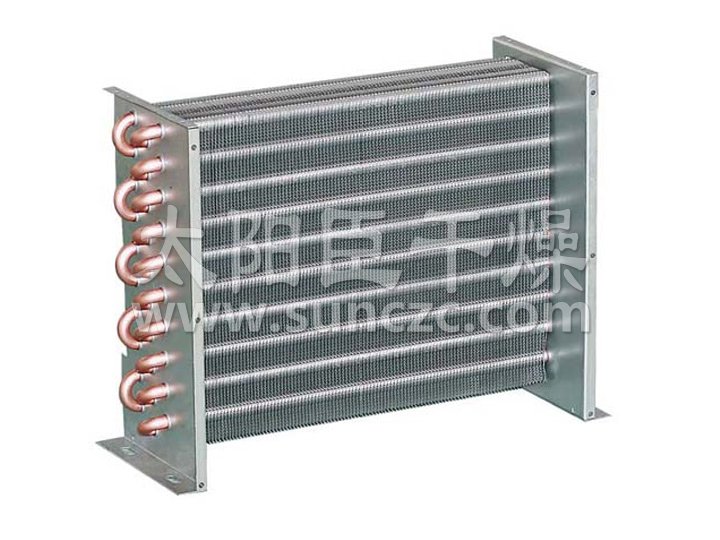

SRQ series radiator

Summay:The spiral fin type air heat exchanger produced by our company, also known as the radiator and the cooling pipe, is the main equipment in the heat exchange device for cooling or heating the air with the hot and cold medium. Radiator is used in hot air heating, air conditioning, cooling, dehumidification, drying and other projects. It can be used to steam or high temperature water can heat the air, through the brine or low temperature water can cool the air.

Detailed description

Product introduction
    The spiral fin type air heat exchanger produced by our company, also known as the radiator and the heat discharge pipe, is the main equipment in the heat exchange device for cooling or heating the air with hot and cold medium.


   Material suitable
     heat sink for the hot air heating, air conditioning, cooling, dehumidifying, drying and so on, for steam or hot water can be heated air, salt water or cold water through the cooling air can. It is widely used in industrial and mining enterprises, light industry, paper making, chemical industry, national defense, textile, electric power, dairy products, ceramics, hospitals, theaters and other air conditioning systems. Its structure is composed of spiral fin tubes and is made of spiral fin tubes. Series products, various models have different sizes.


   Ordering
     can be equipped with a variety of drying equipment used, types and specifications, materials are used: aluminum, stainless steel, A3 zinc plated steel, steel-aluminum, copper, steel pipe and aluminum sheet wound. In addition, the radiator can be used alone for heating and dehumidification in indoor and warehouses. Our company can design and manufacture for users.
 ◎ When ordering, the product model, name, specified length, number of tubes and number of rows must be stated.
 ◎When ordering, if there are special specifications and requirements need to be negotiable, it can be used with various drying equipments. The specifications are various. The materials used are: aluminum alloy, stainless steel, A3 steel surface galvanized, steel-aluminum composite, copper, steel tube aluminum Wrap around. In addition, the radiator can be used alone for heating and dehumidification in indoor and warehouses. Our company can design and manufacture for users.

 When the heat source is hot water steam or heat transfer oil, the fin size

 stainless steelCarbon steelaluminum
Diameter specificationΦ18×2Φ19×2-
Fin outer diameterΦ38Φ39-
Fin thickness0.24-0.4
Heat transfer area coefficient 0.64


 When the heat source is hot air, the fin tube specifications

Diameter specificationΦ63×3
Fin outer diameterΦ103
Fin thickness1.5
Heat transfer area coefficient1.5
